0 deg C Commercial Dairy Industriy Food Processing Milk Chillers
1. Description Of Our Milk Chillers:
1).Adopt the world famous semi-hermetic screw compressor, low noise, and super cooling.
2).Adopt the sensor to test the capacity control, compressor with the 25%-50%-75%-100% Piecewise start and stop, more energy saving when make the largest cooling capacity.
3).The evaporator and condenser adopt seamless welded inside screw heat exchange tubes
4).Adopt micro-computer controller, display the temperature, protect, fault code and etc to the control panel, easy operate
5).The unit design the running temperature can up to -35deg C, satisfy kinds of industry user need.
6).Adopt the most advanced industrial third generation 5 to 6 teeth asymmetrical design of double screw compressor.
2. Components Of Milk Chillers:
| Compressor | HANBELL, BITZER |
| Controller | PUNP |
| Electrical components | SCHNEIDER |
| Evaporator | MGREENBELT |
| Condenser | MGREENBELT |
| Dry filter | DANFOSS |
| Expansion valve | DANFOSS |
3. Specification Of Milk Chillers:
| Product | Water Cooled Chiller |
| Model | MG-60WS |
| Power supply | 3PH-380V-50HZ |
| Chilled water flow(m3/h) | 31 |
| Total power consumption (kW) | 42 |
| Cooling capacity | KW | 179 |
| kCal/hr | 153940 |
Compressor
| Type | Advanced semi-hermetic screw |
| Quantity | 1 |
| Start method | Y-delta |
| Energy control | 0-25%-50%-75%-100%( start @ 25%) |
| Condenser | Type | Shell and tube |
| Inlet/Outlet pipe dimension | PT3" |
| Cooling water flow(m3/h) | 31 |
| Quantity | 1 |
| Refrigerant | Type | R22 |
| Filling quantity (kg) | 32 |
| Expansion valve | Type | Thermostatic expansion valve |
| Evaporator | Type | Shell and tube |
| Quantity | 1 |
| Inlet/Outlet pipe dimension | PT3" |
| Safety protection | Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing |
| Machine Dimension | L(mm) | 2600 |
| W(mm) | 850 |
| H(mm) | 1700 |
| Net Weight | kg | 1680 |
4. Schematic Diagram Of Milk Chillers:
5. If this water cooled type chiller is not workable for your market, we also provide the air cooled industrial water chiller solution, different model optional:
|
|

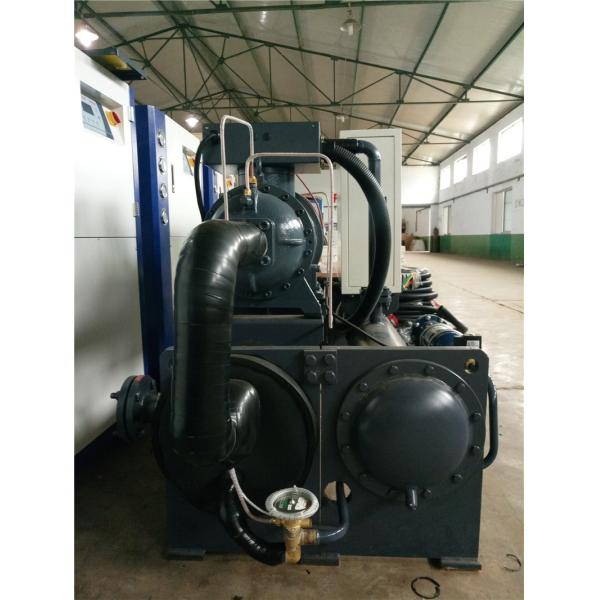

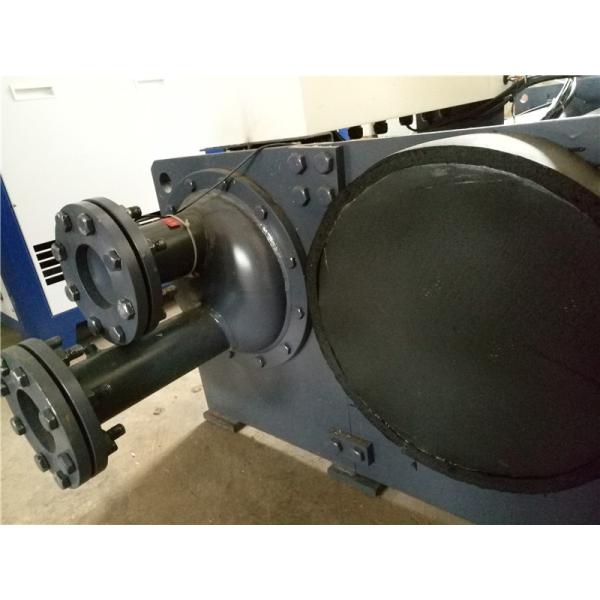

0 deg C Commercial Dairy Industriy Food Processing Milk Chillers Images
|
